Stored Payment Cards Integration

Allow logged-in shoppers to store and reuse the stored payment cards.

The ESW Stored Payment Cards feature allows logged-in shoppers to securely save their payment card details, enabling a faster and smoother checkout experience on future purchases.

Key Benefits

Accelerated Checkout Experience: Shoppers can complete purchases quickly using previously saved cards, reducing friction at checkout.
Increased Conversion Rates: Faster checkout is a proven method to boost shopper conversion, leading to higher revenue for retailers.
Enhanced Shopper Satisfaction: Repeat shoppers benefit from a convenient experience, which builds brand loyalty and encourages repeat purchases.
Effortless Integration: This is a plug-and-play feature built on the standard SFCC plugin, requiring minimal integration effort from the retailer.

How it works

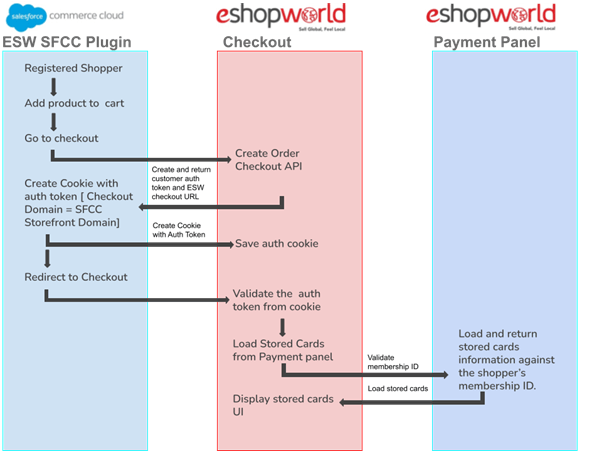

Stored Payment Cards Integration

Workflow between the ESW-SFCC plugin/cartridge, ESW Checkout, and ESW Payments

Workflow Assumptions

The Stored Payment Cards feature operates under the following conditions:

The shopper is already logged in to their account.
The checkout process is executed in a secure (HTTPS) context.
Both the retailer’s site and the ESW checkout are hosted under the same top-level domain (TLD) to ensure secure and seamless card storage and retrieval.

Stored Payment Cards – Shopper Workflow

Shopper Adds Item to Cart

The shopper adds a product to the cart and clicks the Checkout button.

Authentication Check

If the shopper is not already logged in, they are presented with:
- Forced Login, or
- Guest Checkout (if enabled)

Note: Stored card functionality is only available to logged-in shoppers.

Order Creation in SFCC

After login, the ESW SFCC Plugin creates a new order in SFCC.
The order status is set to Created.

Pre-Order Request Assembly

The plugin extracts the registeredProfileId and builds the pre-order payload.
This payload is submitted to the ESW Checkout API to initiate the ESW checkout experience.

ESW Checkout API Response

On success, the response returns:
- A Checkout URL for shopper redirection.
- A shopper access token (shopperAccessToken) to be stored as a browser cookie using the key:
  esw-shopper-access-token

Handling the Access Token in SFCC

The plugin checks for the access token:
- If present, it sets a browser cookie using the domain from the ESW Top-Level Domain preference.
- If absent, the shopper is still redirected to the ESW Checkout URL.

ESW Checkout – Payment Panel Logic

On reaching the Payment Panel, the ESW Checkout:
- Reads the esw-shopper-access-token from the cookie.
- Validates the token.
- Makes a server-to-server call to the ESW Payment API to fetch stored cards.

Stored Card Selection

If valid stored cards are returned:
- The shopper sees a dropdown menu listing their saved payment methods.
- The shopper can select a card and proceed to complete the checkout.

The esw-shopper-access-token cookie is required to authenticate the shopper and enable the stored payment card feature on ESW Checkout.

Attribute	Description
Name	`esw-shopper-access-token`
Max-Age	Inherits from the SFCC platform’s native session expiration settings
Domain	`{your checkout domain}` (e.g. `mycheckoutdomain.com`)
Secure	`true` (must be set for HTTPS usage)

The domain can be configured using Business Manager → ESW Checkout Configuration → ESW Top Level Domain

Sample HTTP Header

Set-Cookie: esw-shopper-access-token=abcdef; Secure; Domain=mycheckoutdomain.com; Max-Age=3600

Non-Headless Architecture (SFRA / SiteGenesis)

The cookie is automatically created by the ESW SFCC plugin during checkout flow.

Headless Architecture

Headless storefront developers must manually implement cookie creation on the client side, using the values specified above.

The ESW SFCC plugin cannot control client-side cookie creation in headless environments.

First-time and Repeat Shopper Experience

First-time shoppers are prompted to save the cards for later use

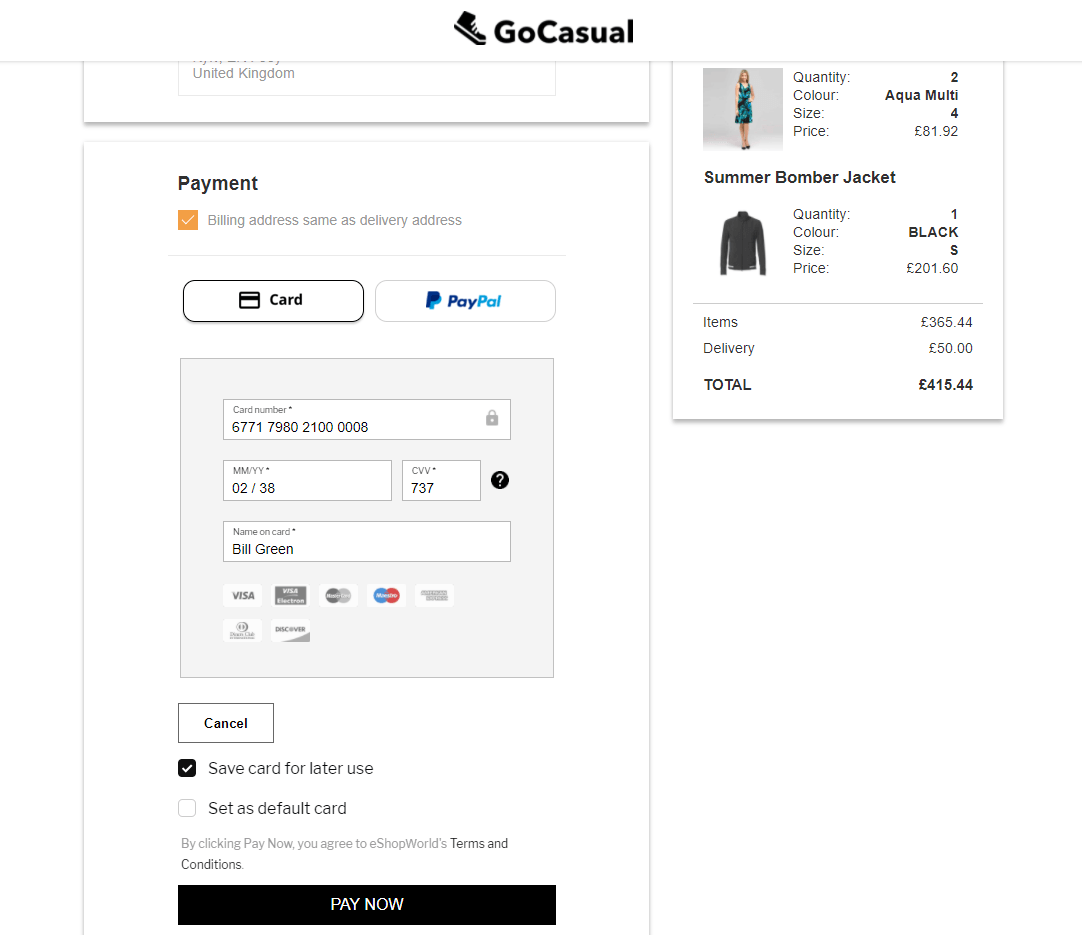

First-time experience

First-time shoppers are prompted to save the cards for later use

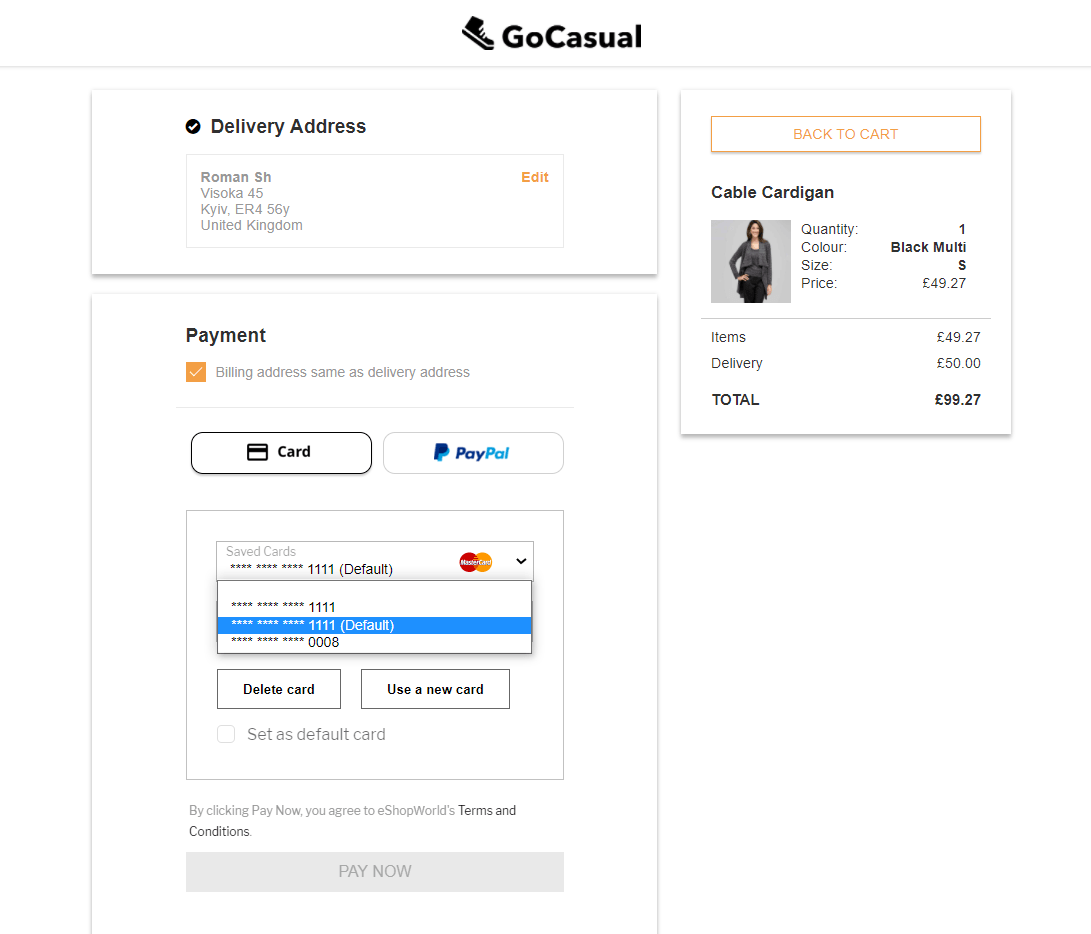

Repeat experience

Returning shoppers are presented with saved cards

Options for Testing in Sandbox and Staging Environment

To test the Stored Payment Cards feature in a sandbox or staging environment, you have two options

Option 1 Matching Top-Level Domains

Ensure that the top-level domain is the same for both the SFCC testing instance and the ESW Checkout. This allows the esw-shopper-access-token cookie to be set and read correctly, enabling the stored cards feature without additional configuration.

Option 2 Manually Set Cookie (Mismatched Domains)

If the top-level domains differ between your SFCC instance and the ESW Checkout (e.g., .sfccsandbox.com vs. .eswcheckout.com), the cookie must be added manually for testing.

Use the following steps when testing the Stored Payment Cards feature in a sandbox environment where top-level domains differ between SFCC and ESW Checkout

Begin the checkout process as a logged-in shopper.
After initiating checkout, open Developer Tools in your browser.
Navigate to:
Application → Storage → Cookies
Confirm that the cookie esw-shopper-access-token has been created under your SFCC top-level domain.

Domain: zyfl-001.dx.commercecloud.salesforce.com

Redirect to ESW Checkout

Continue the checkout flow until the shopper is redirected to the ESW Checkout page.

In Developer Tools, go to:
Application → Storage → Cookies
Locate and copy the esw-shopper-access-token value from the SFCC domain.
Create a new cookie entry for the ESW Checkout domain (e.g., .eshopworld.com) using the following fields:

Field	Value
Name	`esw-shopper-access-token`
Value	(paste the copied token)
Domain	`.eshopworld.com`
Secure	`true`
Max-Age	`3600` (1 hour, or as needed)

Refresh the ESW Checkout Page

Reload the ESW Checkout page in the browser.
The Stored Cards payment option should now appear and be available for selection.

This manual setup is only needed for mismatched domains in non-production environments.
